Overview of production possibilities

Overview of production possibilities in the company KPK:

The cutting machine Pierce RUR 3000

The technical parameters:

- 1 x plasma torch (source Hypertherm 130) + 2 x oxygen acetylene torch

- max. dimensions of the cut semi-finished product : 2000 x 6000 mm

- max. thickness of cut blank for plasma burning : 25 mm

- max. thickness of cut semi - finished product for oxygen burning : 200 mm

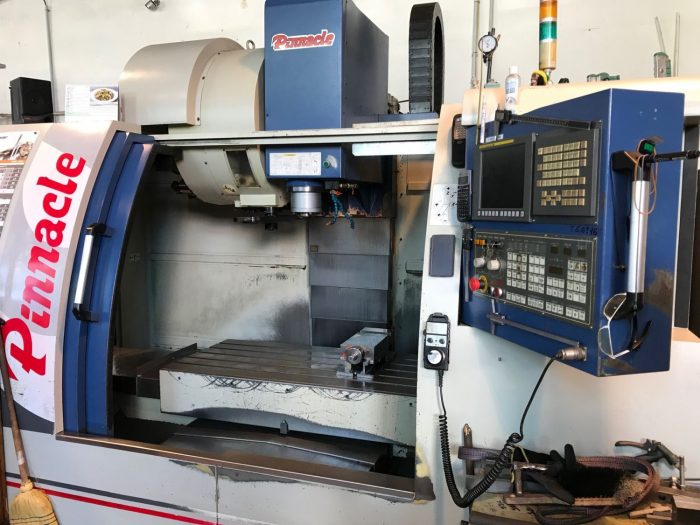

The Machining center PINNACLE VMC1000s

The technical parameters:

- X-axis table travel : 1020 mm

- Y-axis table travel : 610 mm

- table mounting surface: 1200 x 600 mm

- maximum table load: 600 kg

- max. thickness of cut semi - finished product for oxygen burning : 200 mm

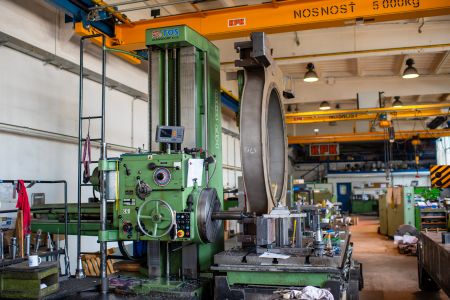

The horizontal boring machine RETOS Varnsdorf HP100

The technical parameters:

- X-axis travel: 6000 mm

- Y-axis travel: 1600 mm

- spindle path in Z axis: 800 mm

- table mounting area: 4000 mm x 1500 mm

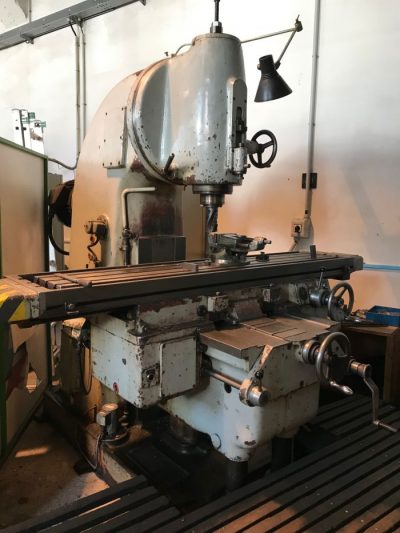

The cutter TOS FA5

The technical parameters:

- table size: 425 × 2000 mm

- axle vehicles: X = 1400 mm, Y = 440 mm, Z = 450 mm

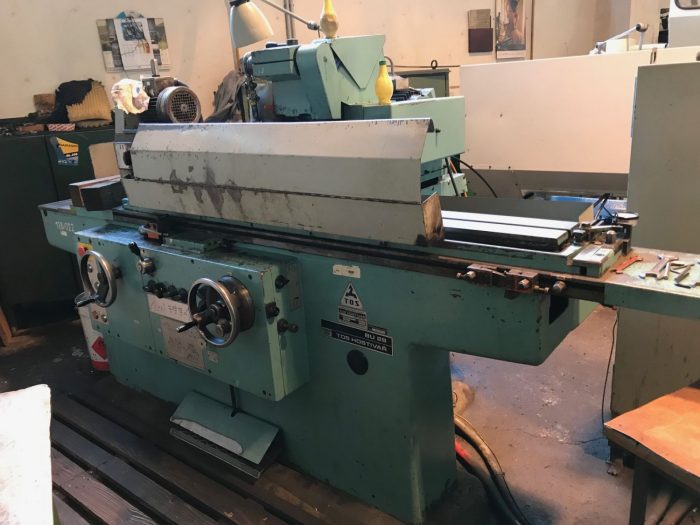

The grinding machine BU28 / 1000

The technical parameters:

- running diameter: 295 mm

- distance between points: 1000 mm

- max. weight of semi-finished product in points: 65 kg

- transverse movement of the grinding headstock: 220 mm


The universal center lathe TRENS SN32 / 1000

The technical parameters:

- length of semi-finished product : 1000 mm

- diameter of the semi-finished product : 300 mm

- inner spindle diameter 52 mm

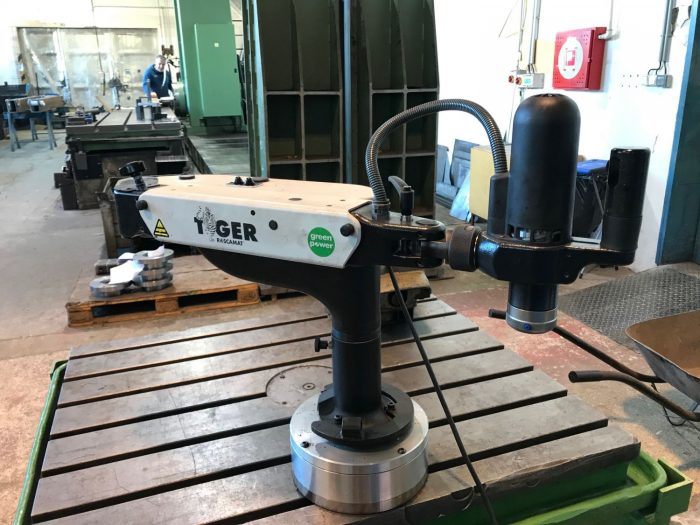

The electric threading ROSCAMAT TIGER

The technical parameters:

- working radius: 1160 mm

- thread range: M2 - M27 (M30 aluminum)

- max. torque: 150 Nm

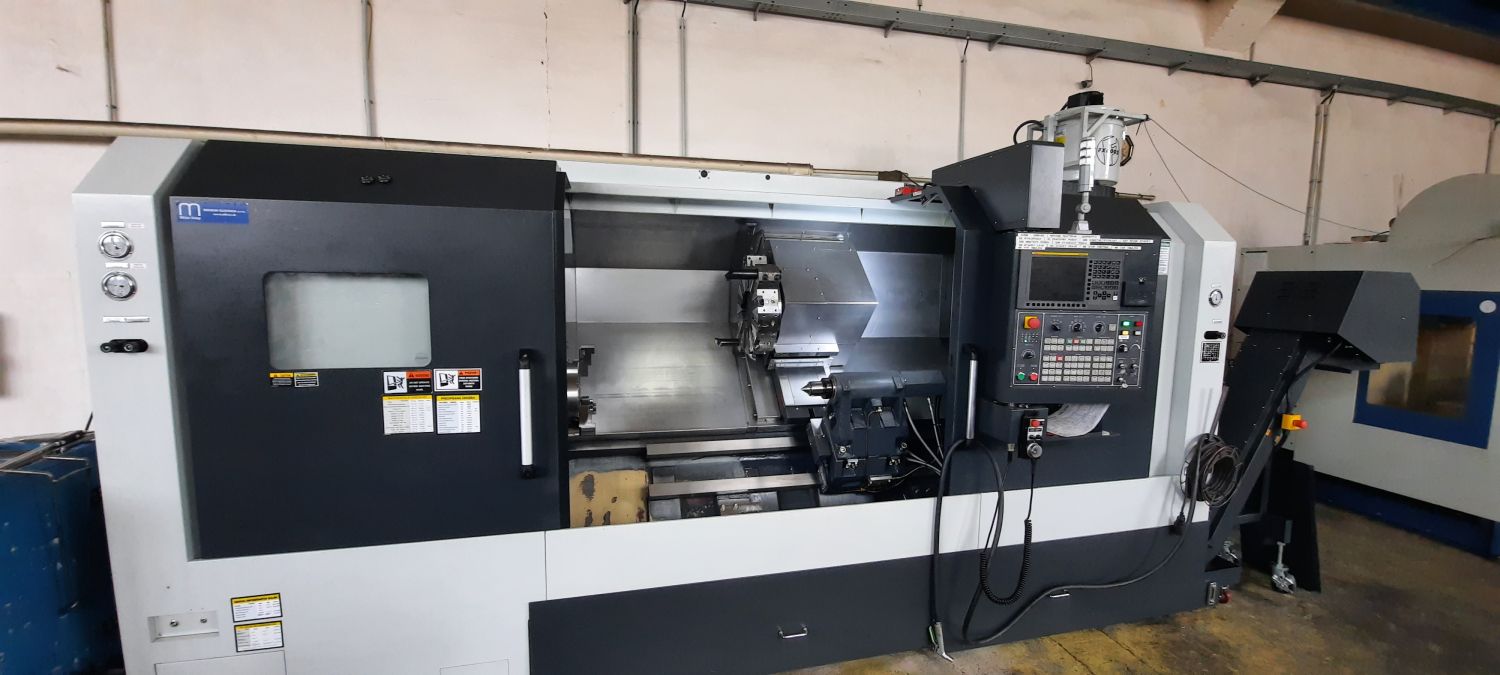

CNC LATHE LEADWELL 25iXXl

The technical parameters:

- max. running diameter: 670 mm

- max. turning length: 1550 mm

- max. bar diameter: 77 mm

- X axis: 225 + 25 mm, Z axis: 1590 mm


The other machines

- Universal center lathe TOS SV18 / 1000

- Radial drilling machine MAS VO50

- Stand drill TOS VS20

- Hydraulic press Metallkraft WPP 100M - 100t / stroke 320mm

- Engraving laser 20W - area 200x200 mm

- Scissors - sheet metal NTE 2000 / 6,3-E - sheet metal width 2m, thickness max.6 mm
