Crane Unit-Built System KPK KB
lifting capacity 100 to 1500 kg
The crane unit-built system KPK KB offers the optimum solutions for quick and safe handling of loads.
As standard the system is equipped with electric chain hoist. The carrying profiles enable maxim load up to 1500 kg per a beam. The trolley and bridge drive can be manual or electric. The travel wheels are made of plastic due to which the noise during operation is reduced to minimum. The power supply is made by means of trolley wire passing through the carrying profile, or on the individual trolley, or covered plastic trolley.
Advantages of the system KPK KB
- short designing time, easy assembly, high operation safety, big operation surface under the crane
- crane runway and the beam can be fix or swinging, all components are connected by means of bolt joints
- all parts are galvanized, the beams are coated with a color shade according to the customer requirements (standard blew color shade RAL 5005)
- high variability by realization of handling facility in the working space
Examples

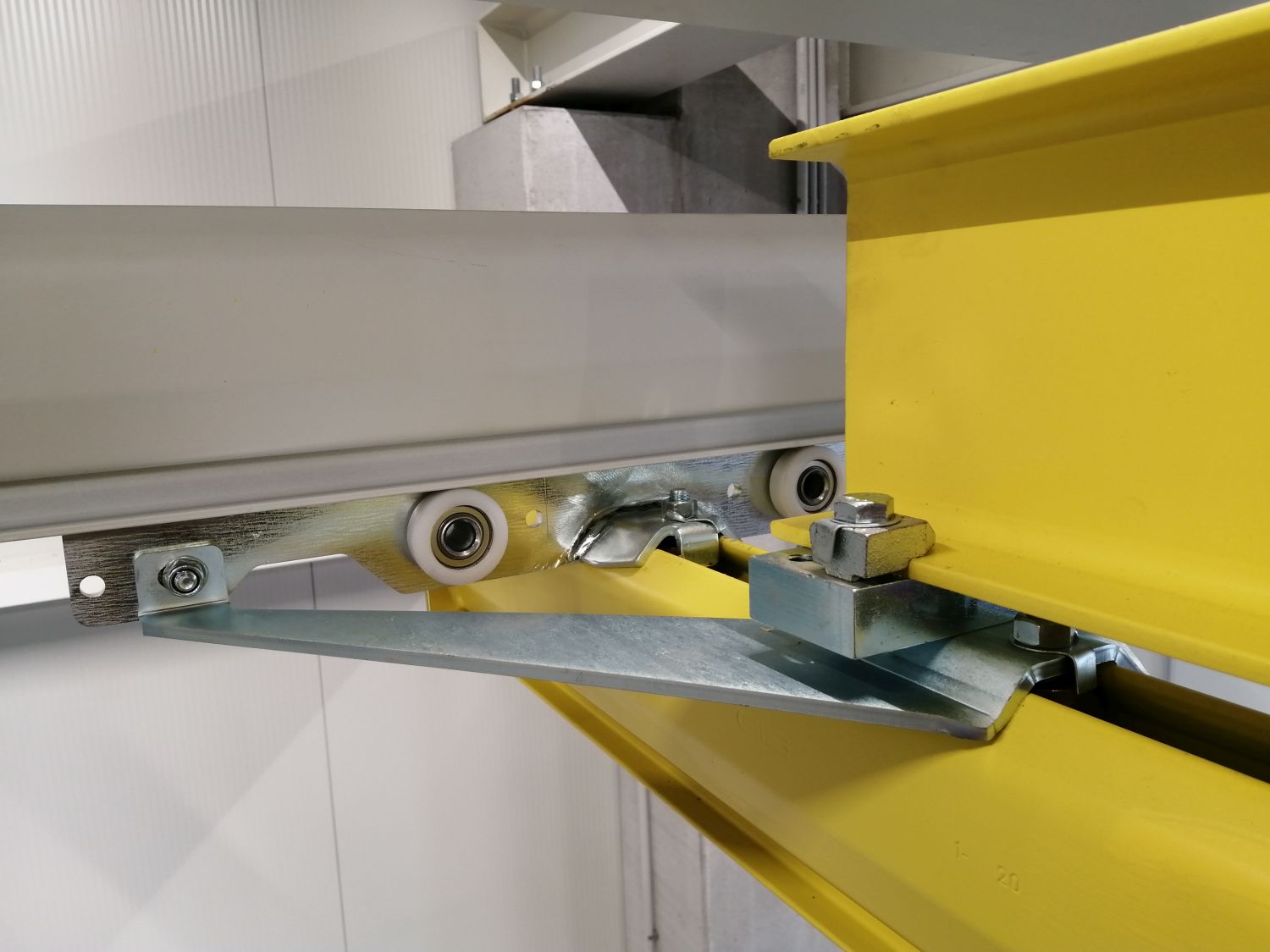

- Detail of connection of KB bridge with endcarriage
- KB crane with reinforced beam

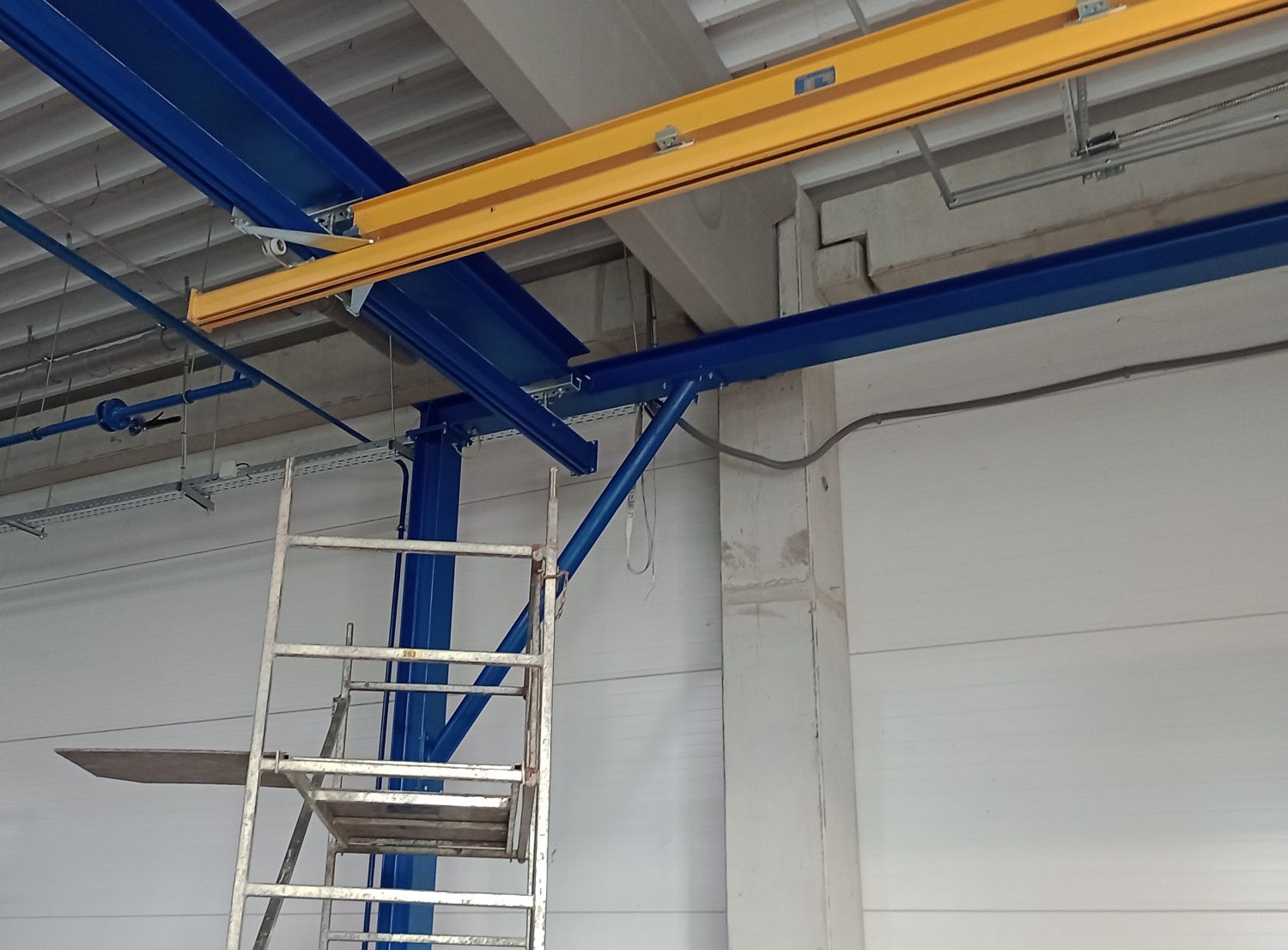

- KB crane

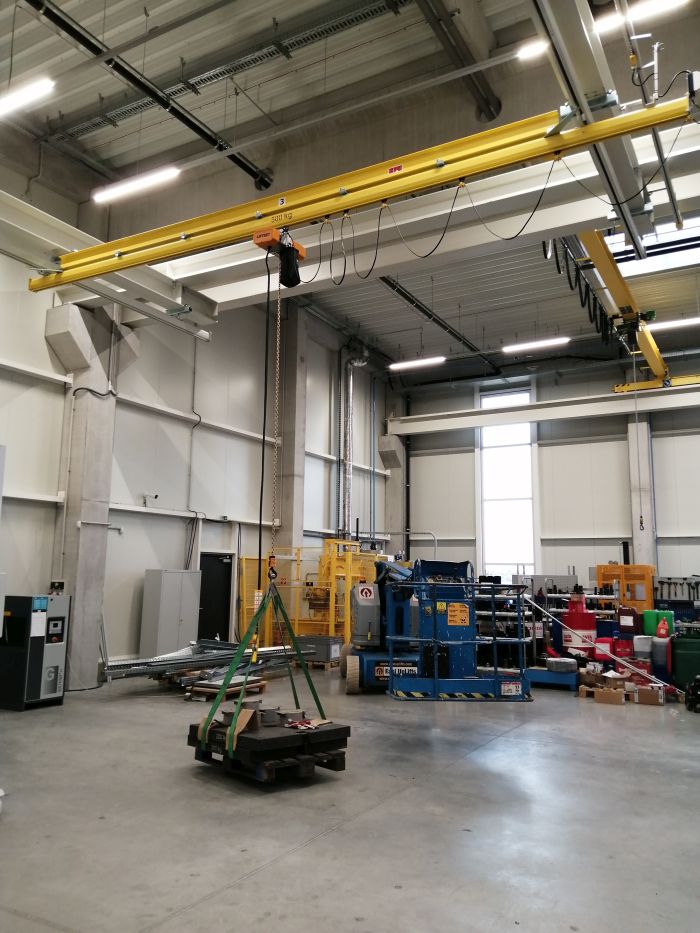

- Singlegirder overhead crane
- Reinforced bridge beam
- Craneway from KB profile
- Single girder overhead crane

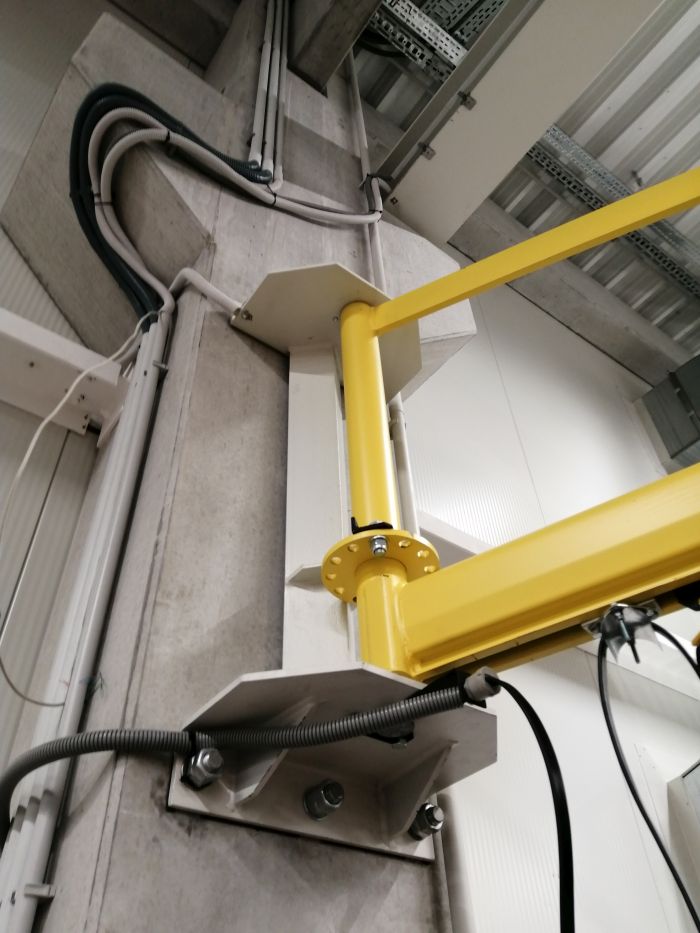

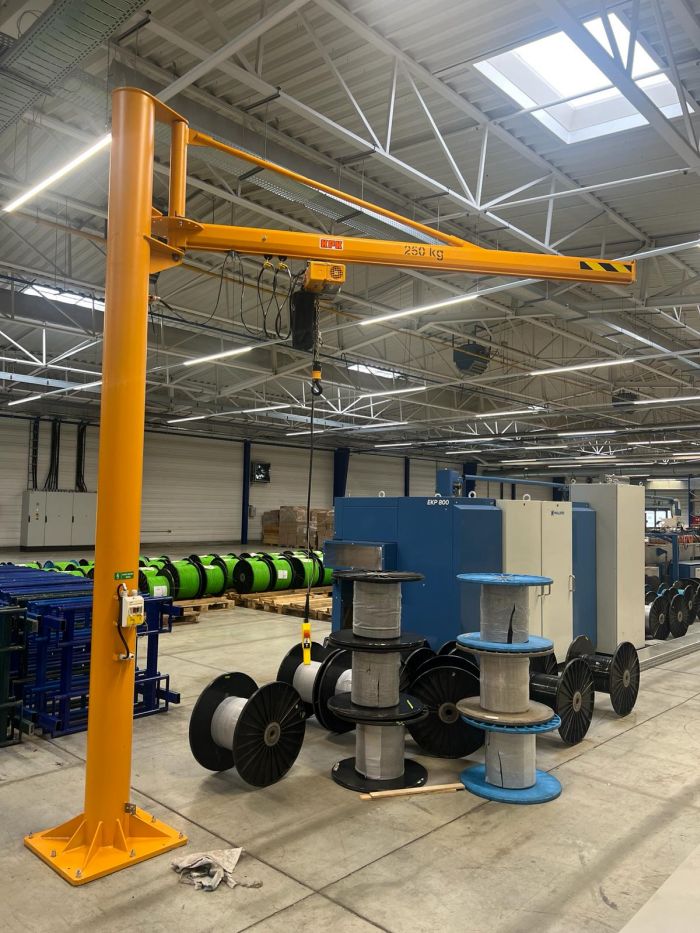

- Slewing jib crane from KB profile
- Slewing jib crane from KB profile

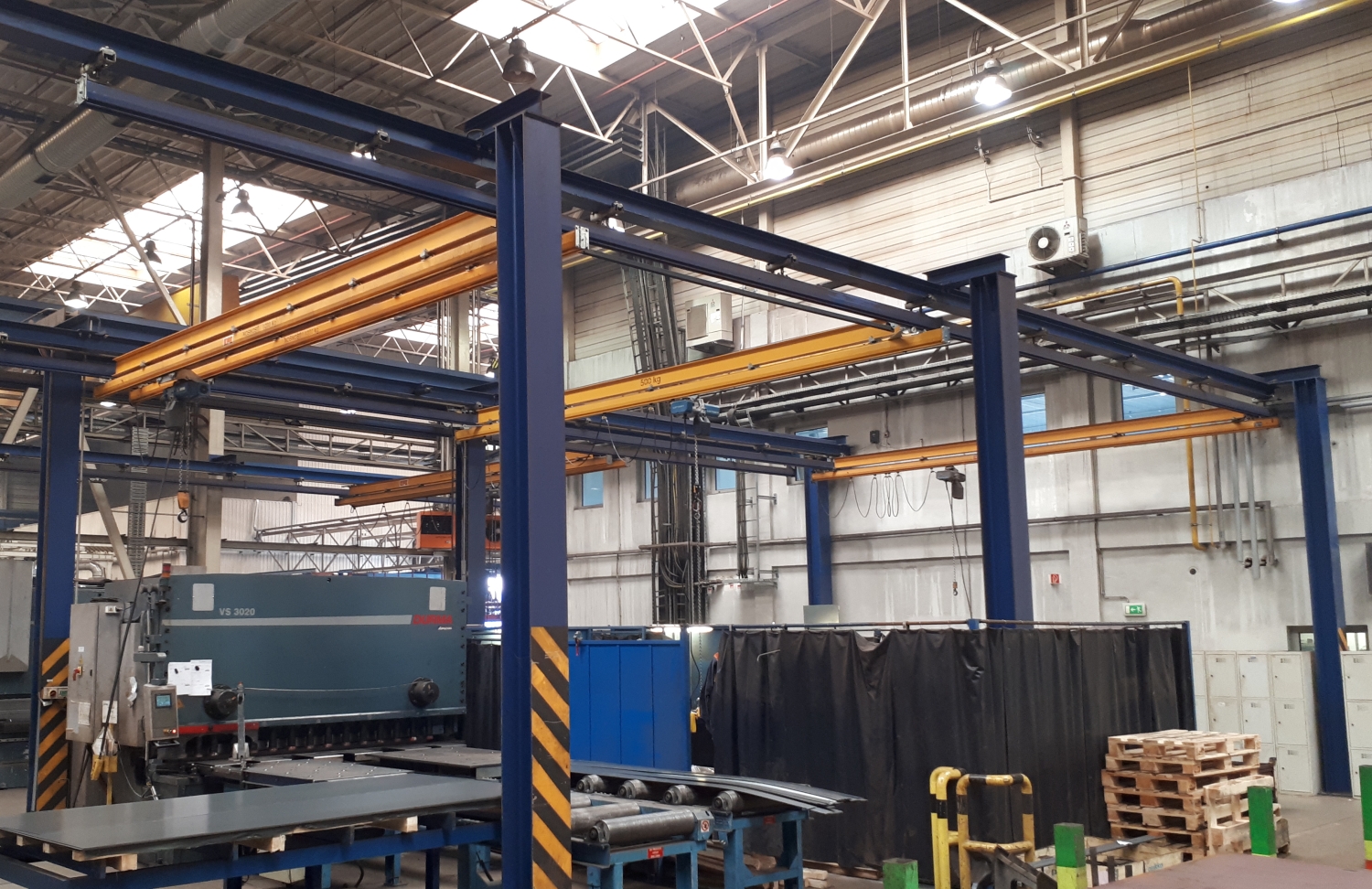

- Double girder bridge crane KB

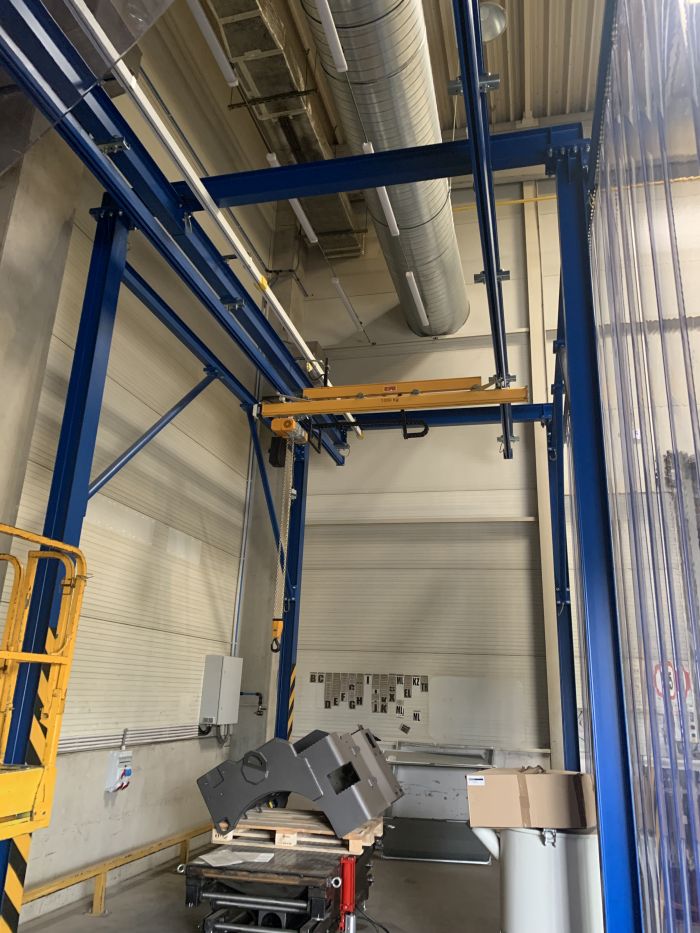

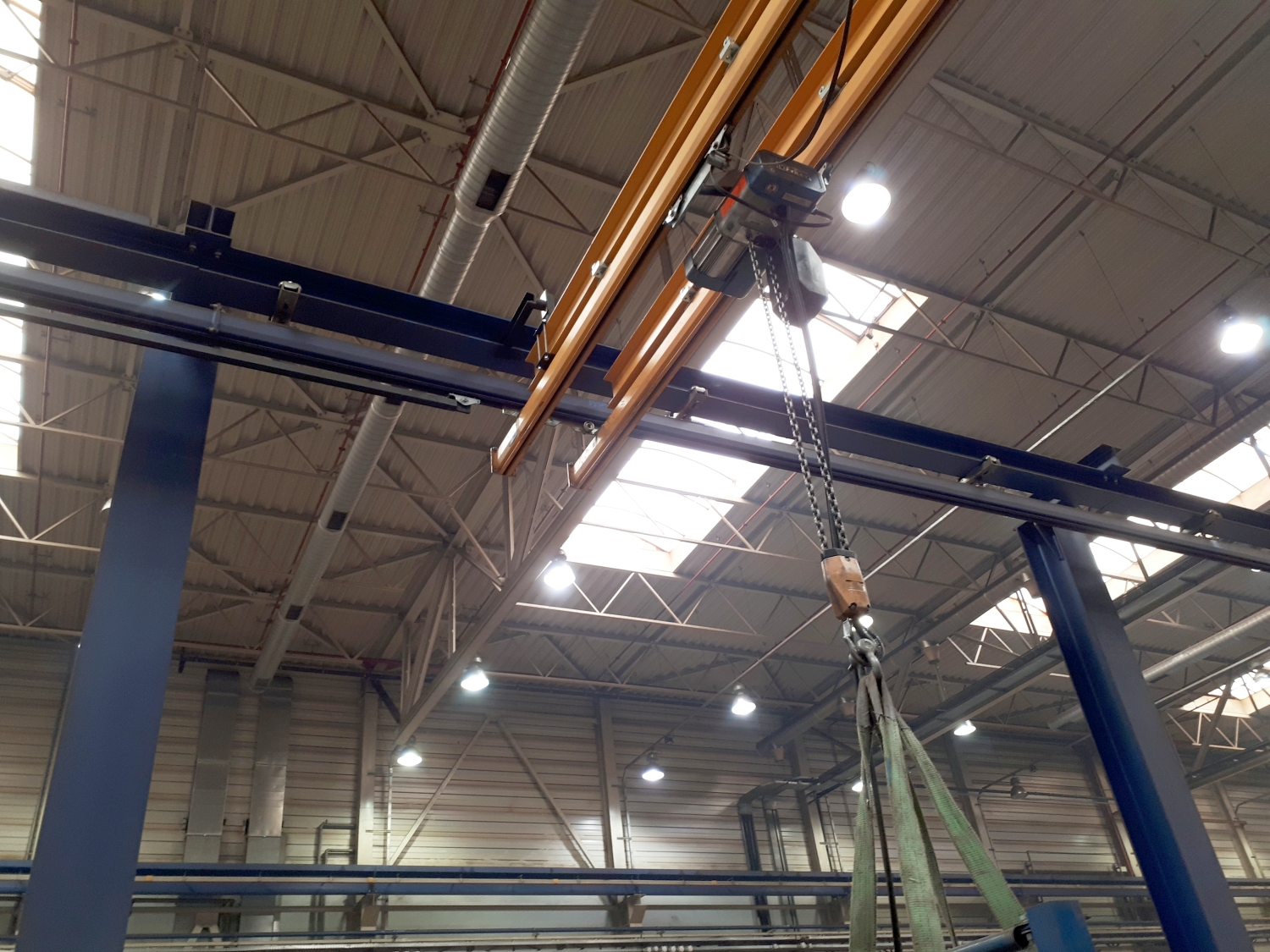

- Crane KB

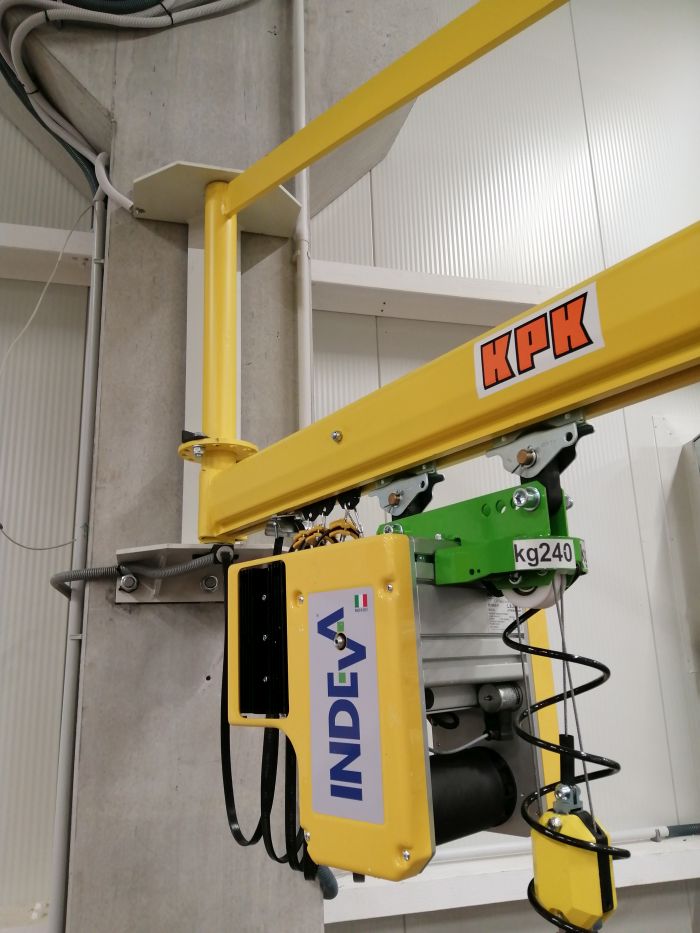

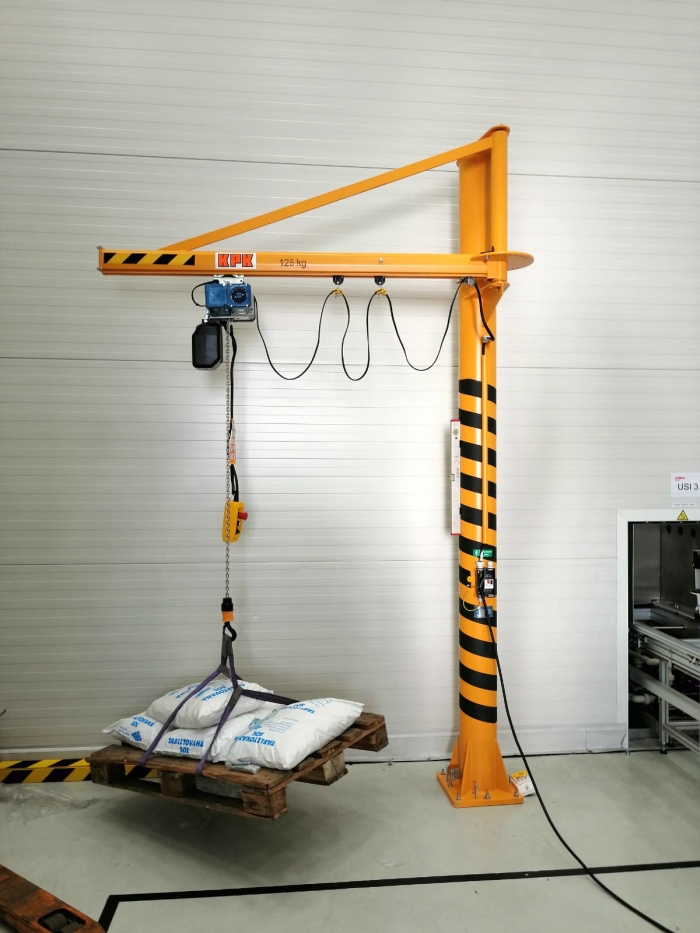

- Slewing jib crane
DETAILS OF FIXING THE BEAMS AND CRANE PARTS

- crane bridge made from KB profile

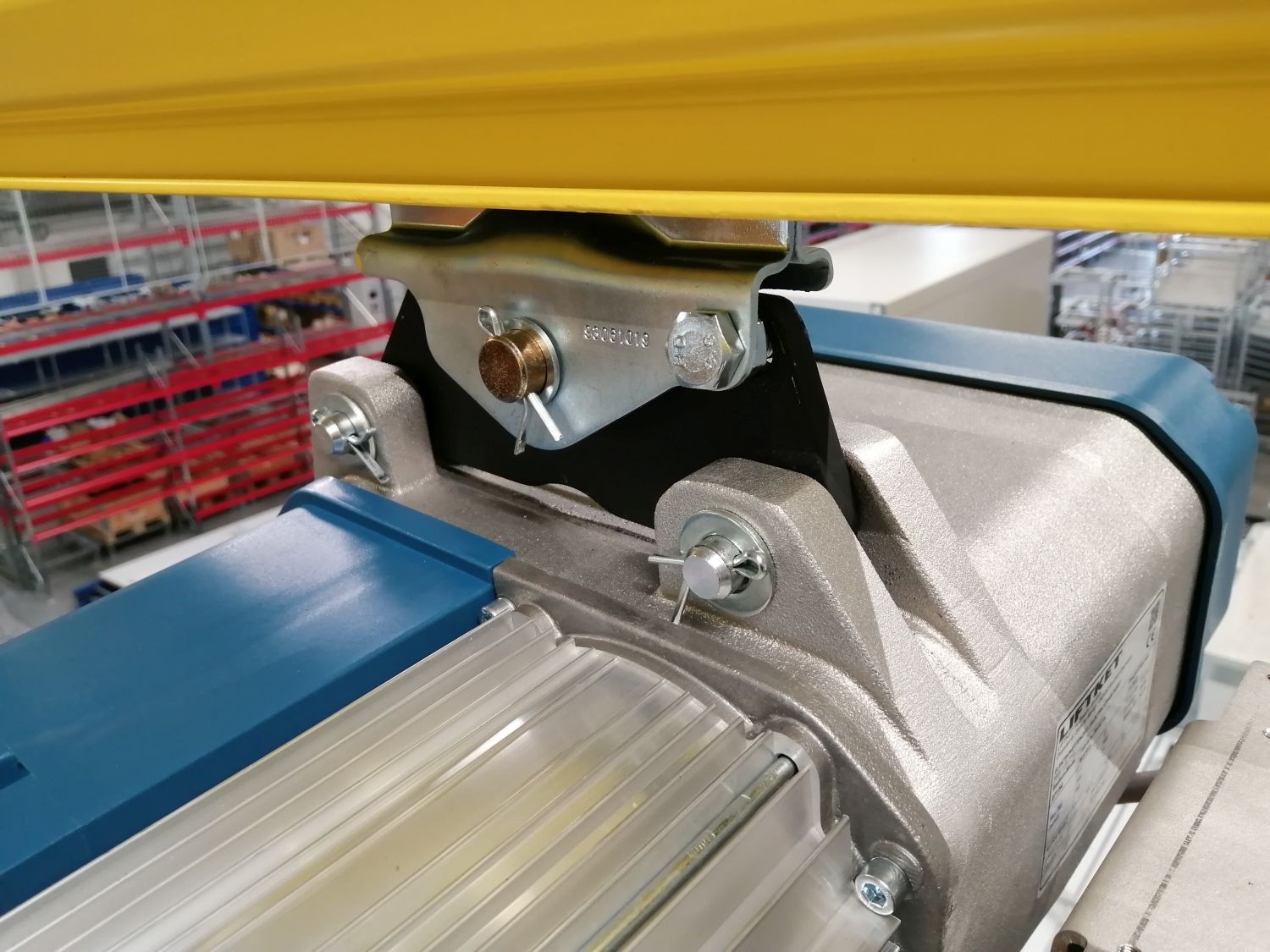

- Hoist trolley
- Hoist with pending control
- Hoist power supply trolley (gathering cable in KB profile, covered or gathering in separate "C" profile)
- Runway beam KB
- Crane cross beam
- Crane power supply trolley (gathering cable in KB profile, covered or gathering in separate "C" profile)

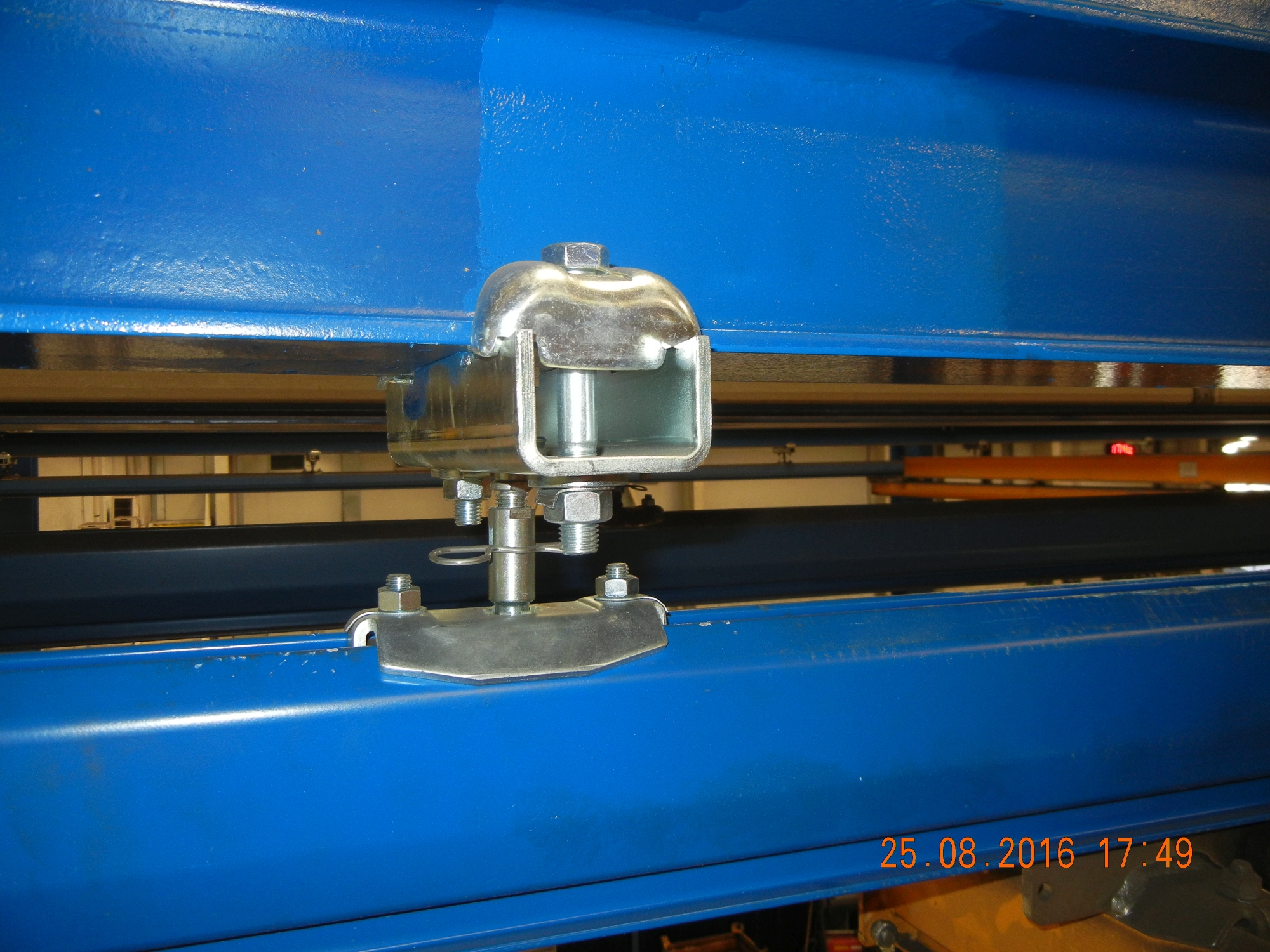

- Suspension of runway beam on the hall supporting structure (on the steel or concrete beams)
- Hall support structure

- Steel beam KB – I
- Steel beam KB II
- Steel beam KB III
- Suspension pendulating short, adjustable (item 8.)
- Suspension rigid, direct (item.8)
- Suspension pendulating from rod, adjustable (item.8)
- Bracing pendulating from rod, adjustable (item 8.)
- Manual trolley for KB hollow profiles (item. 2)
- Rolling apparatuses for guiding the crane bridge (item. 6)
- Electric tug (item 2.)
- Bend
- Slide switches
- Change of direction by 90° in confined space
- KB – example of the construction of the track for the hoist with slide switches and bends

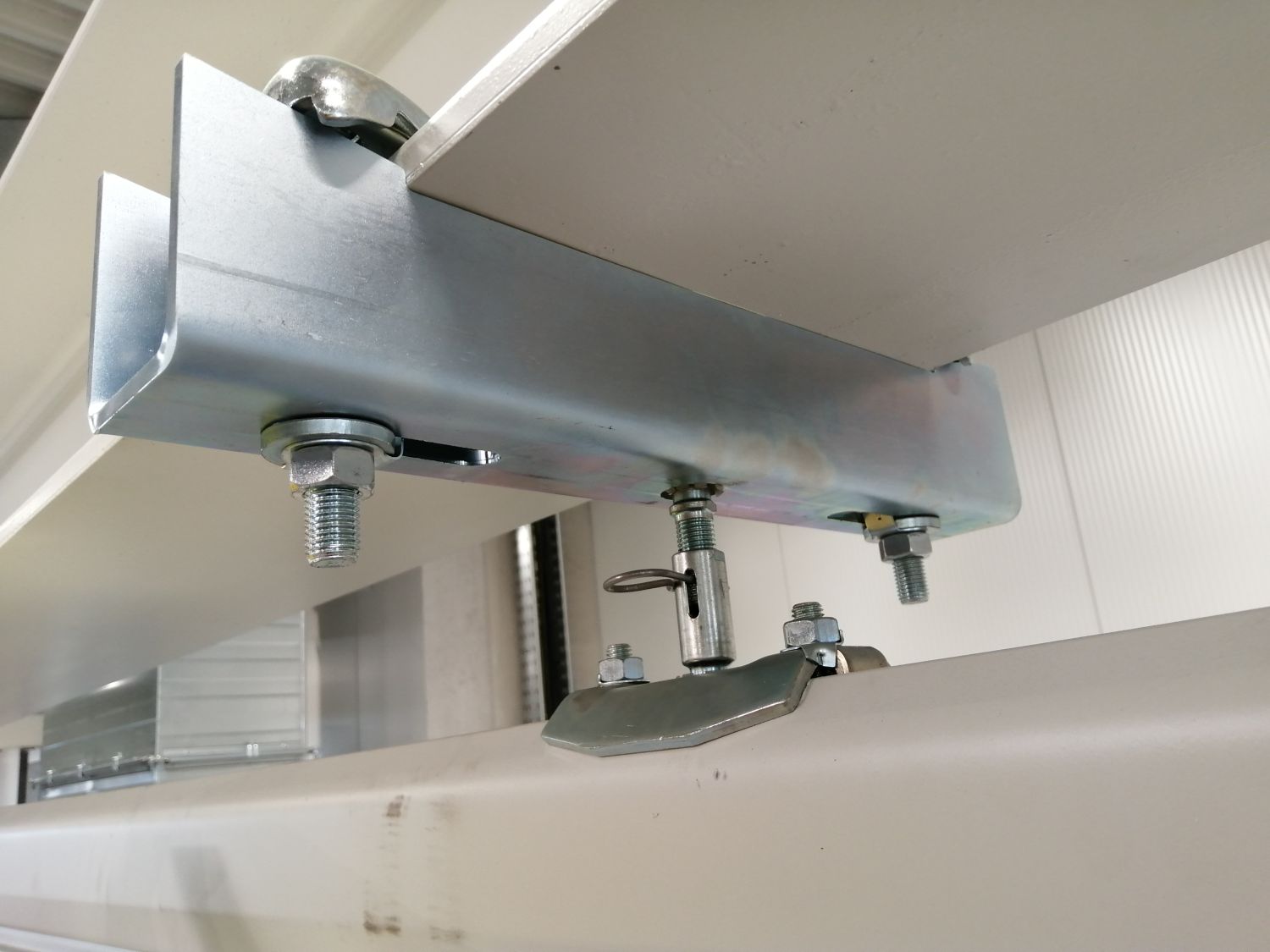

- Detail of hanging KB beam on supporting structure
