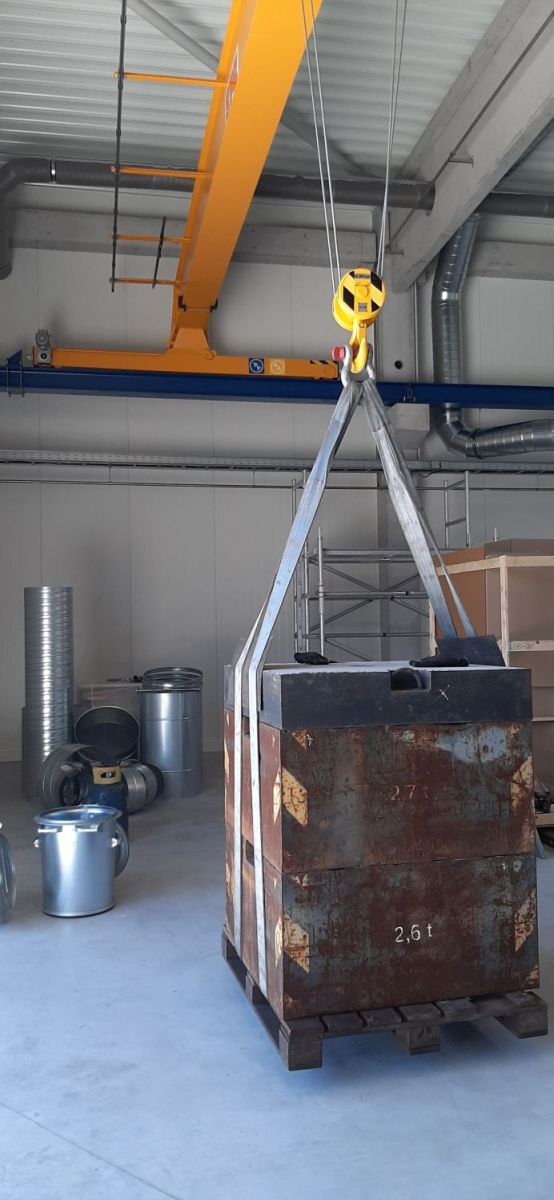

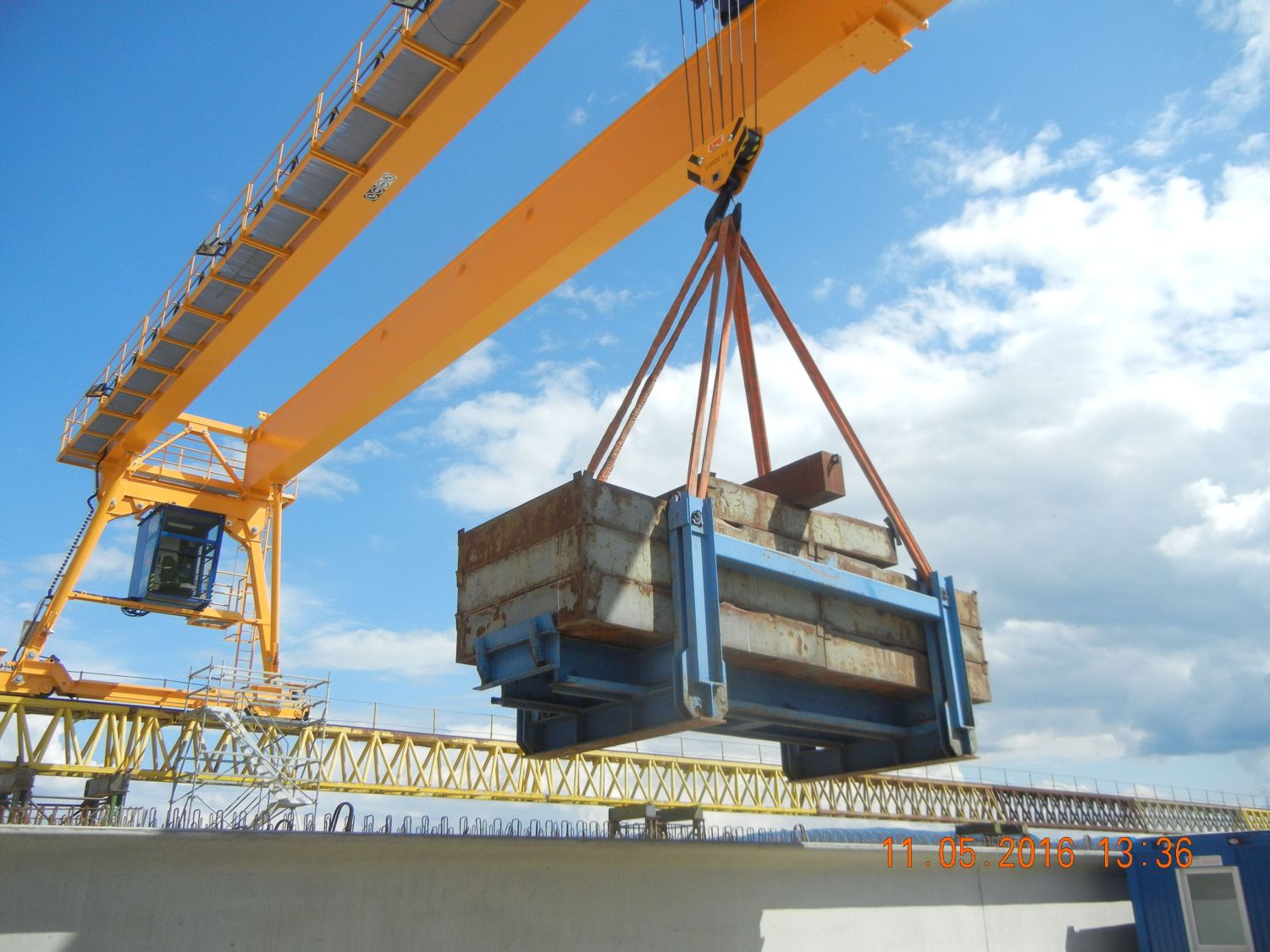

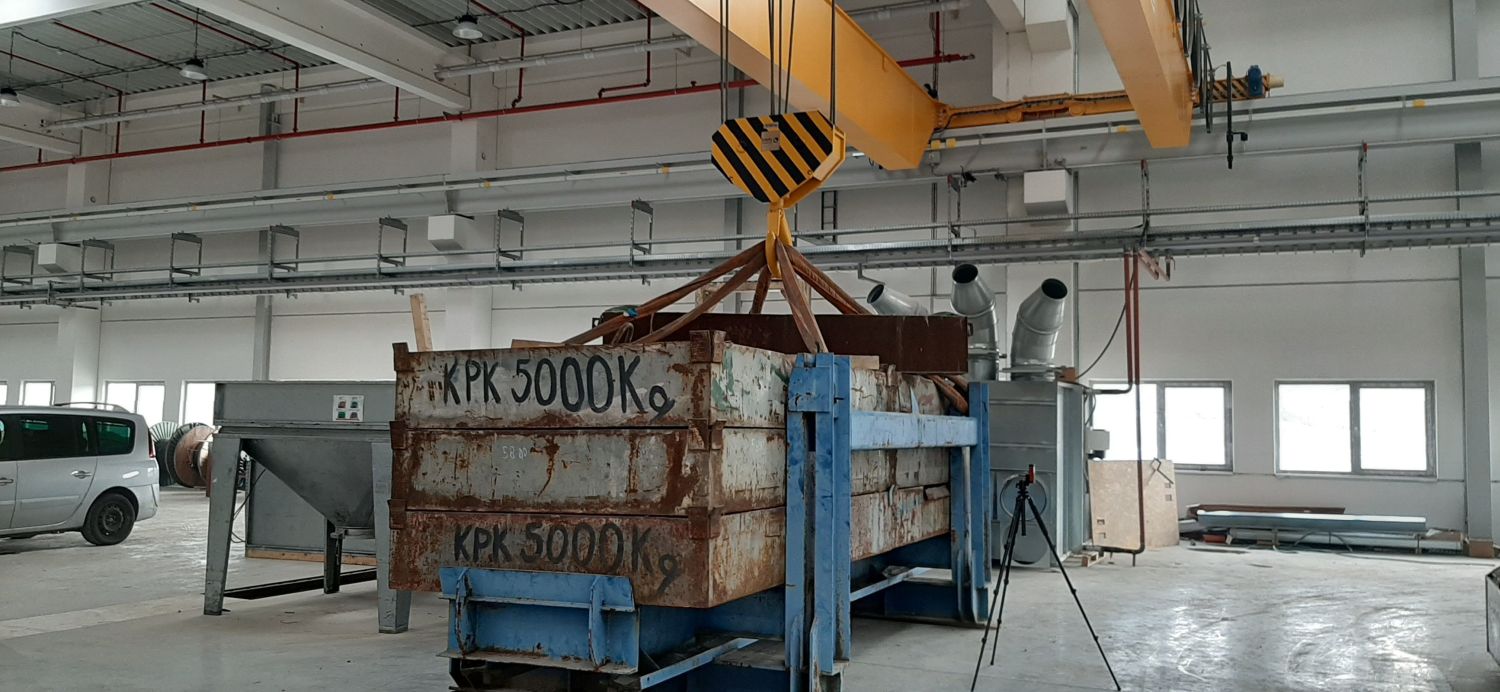

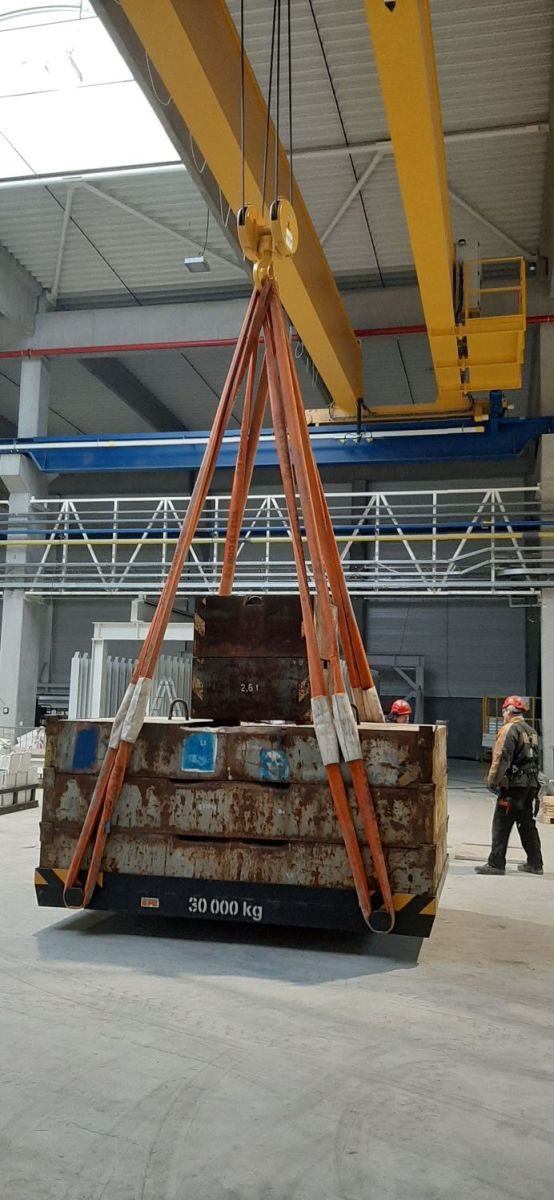

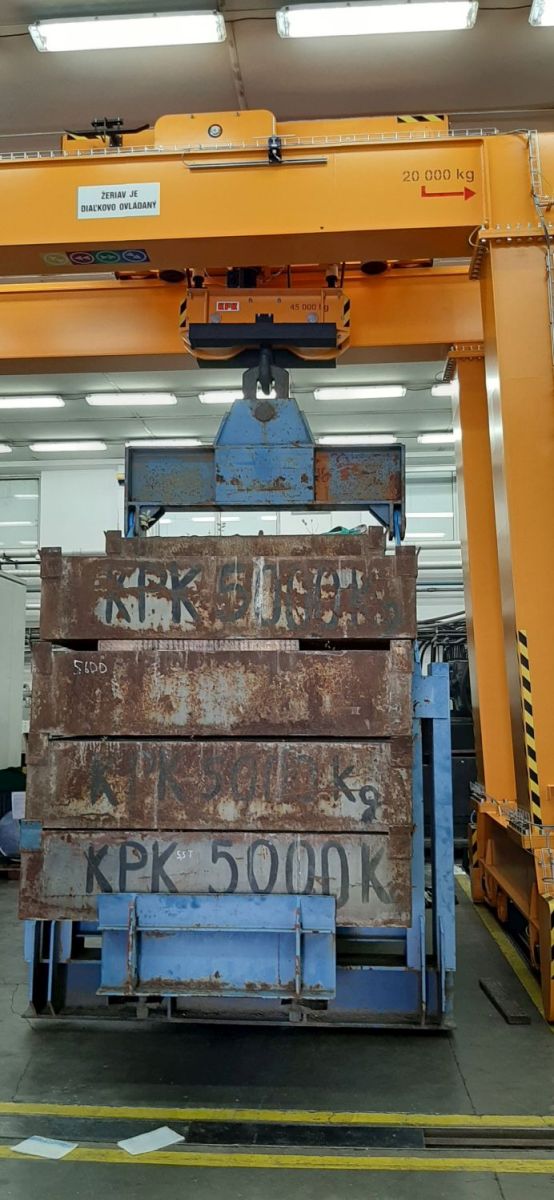

The KPK company has its own test loads for testing lifting equipment, which can be rented together with binding means

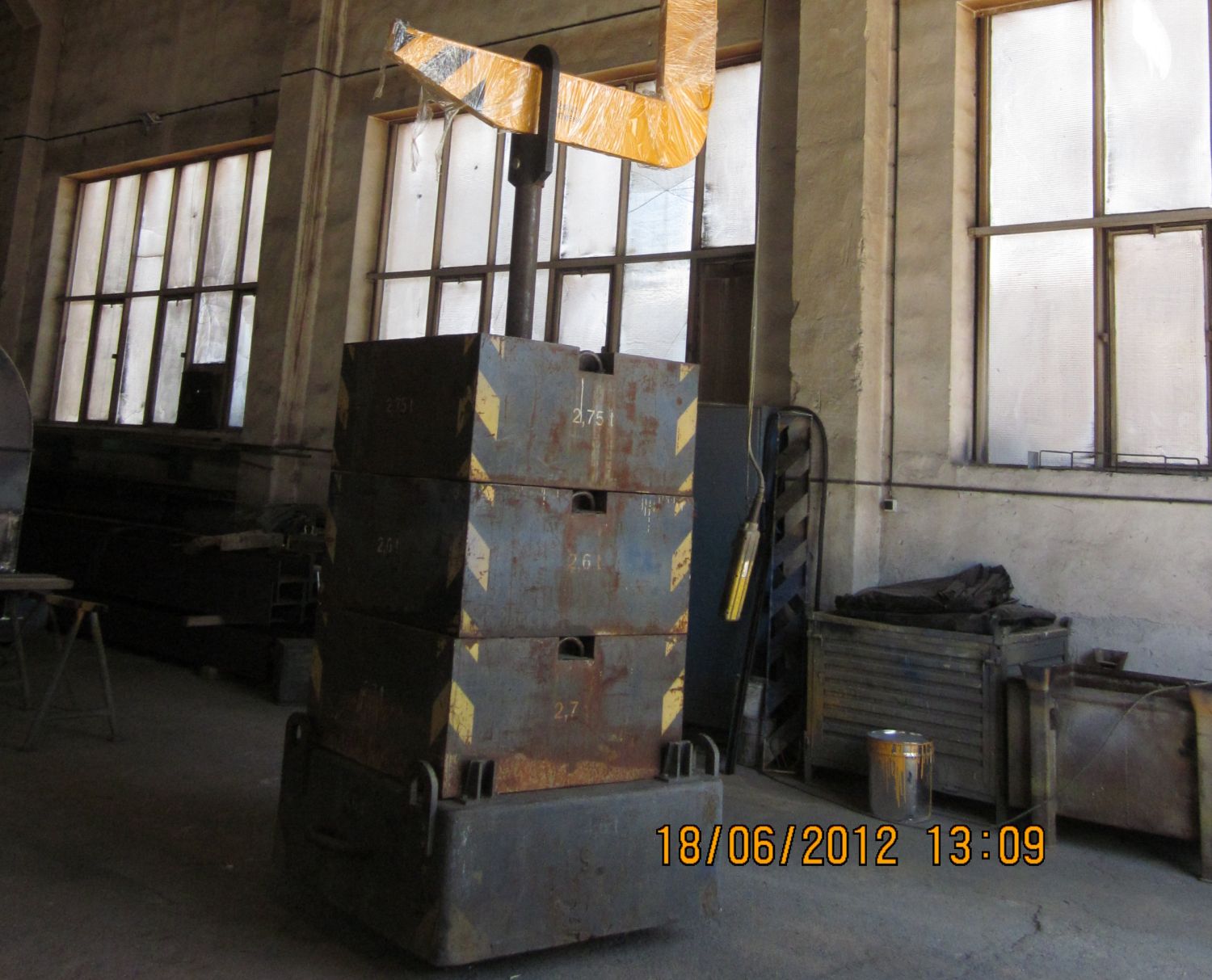

List of test loads:

weight • pieces • dimensions:

  • 25 kg - 8 pcs
  • 200 kg - 2 pcs - 1000x1000x90 mm
  • 300 kg - 2 pcs - 1000x1000x90 mm
  • 1000 kg - 4 pcs - 1000x1000x200 mm
  • 2600 kg - 1 pc - 1010x1020x500 mm
  • 2700 kg - 1 pc - 1010x1020x500 mm
  • 2750 kg - 2 pcs - 1010x1020x500 mm
  • 4600 kg - 1 pc - 1220x1220x460 mm
  • 5500 kg - 12 pcs - 3020x1860x410 mm

load carrier serial number 5054 - drawing number 9005-0:

Length of suspension: 2700 mm

  • Weight of loads: max. 60 000 kg
  • Weight of spreader beam: 885 kg
  • Carrier weight: 4700 kg
  •
  •
  • Length of suspension: 2400 mm
  • Weight of loads: max. 60 000 kg
  • Weight of spreader beam: 885 kg
  • Carrier weight: 4700 kg
  •
  • Lifting straps  25000 kg / 5m
  • Weight of loads: max. 81 400 kg
  • Weight of spreader beam: 885 kg
  • Carrier weight: 4460 kg

load carrier serial number 7658 -drawing number 6254-0:
  • Lifting straps 15000 kg / 5,5 m
  • Weight of loads: max. 40 000 kg
  • Carrier weight: 680 kg
