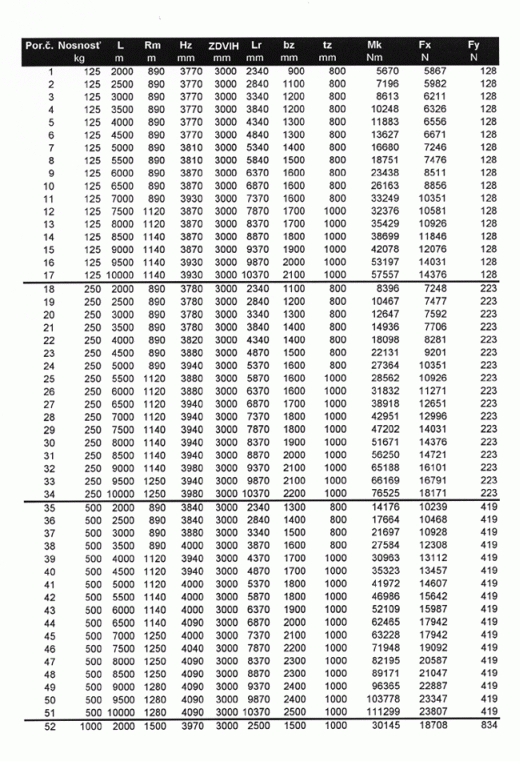

Basic parameters of Slewing jib pillar cranes

The loads and parameters are only INFORMATIVE. More detailed information will be sent after specifying the parameters of the crane. Values of parameters of cranes in the tables (building heights, ...) are only informative.

Company KPK manufactured cranes according to customer requirements.

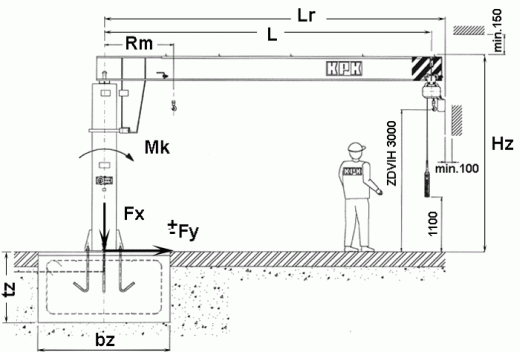

Forces and moments on the foundation are without coefficients. They are intended only from the own weight of the crane and the load for crane with the following parameters:

  • crane is designed for work in the hall
  • hoisting speeds are till cca. 5 m/min, travelling speeds of crane crab are cca. 20 m/min
  • hook path: 3m
  • simple trolleys for hoists
  • crane classification according to STN 270103: H2 D2 J3

Note:
"Nosnosť" = Load capacity
"Zdvih" = Hook path

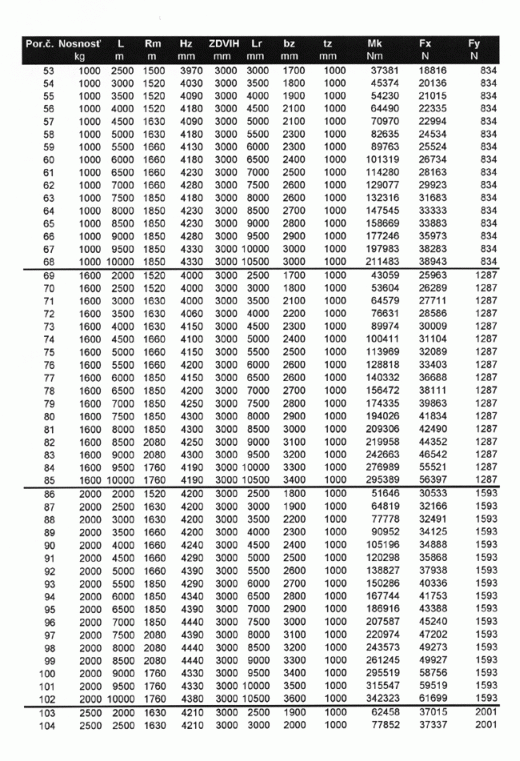

Basic parameters of Slewing jib pillar cranes

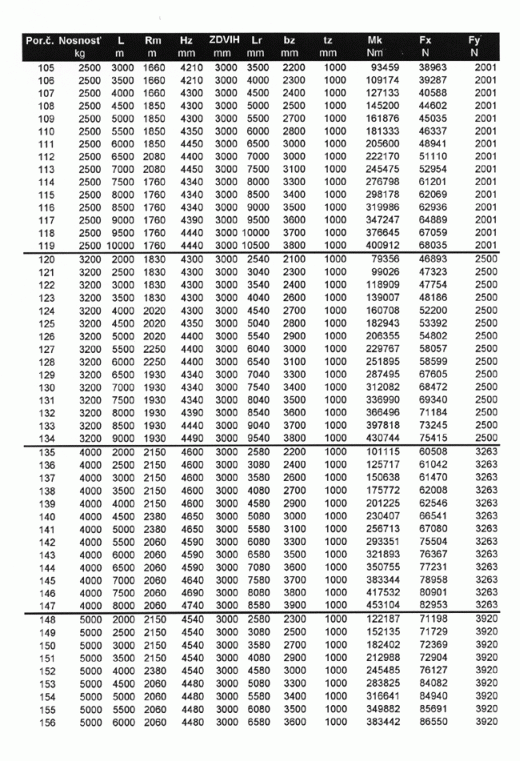

Basic parameters of Slewing jib pillar cranes

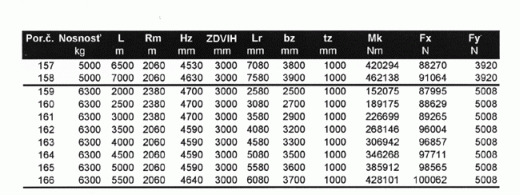

Basic parameters of Slewing jib pillar cranes
Basic parameters of Slewing jib pillar cranes
Basic parameters of Slewing jib pillar cranes

Parameters of cranes with capacity more than 6300 kg are available on request.

Exact weights of hoists appear on the website wire rope hoists or chain hoists.
